Steel cylinder external polishing machine pipe tube exterior polisher
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 제품명 | 강철 실린더 외부 연마기 파이프 튜브 외부 연마기 | 색상 | 블루/레드/그레이 |
|---|---|---|---|
| 차원 | 7500x1200x1200mm | 무게 | 3000kg |
| 전압 | 380V 400V 415V 등 | 제공하다 | ODM & OEM |
| 자격증 | CE/ISO |
제품 설명

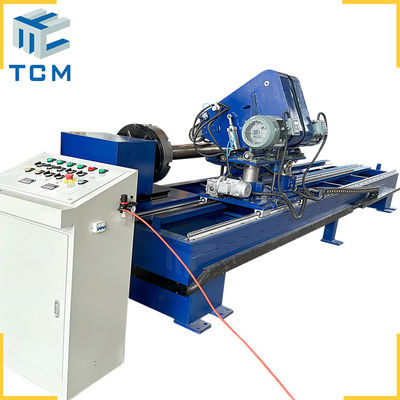

Steel cylinder external polishing machine pipe tube exterior polisher

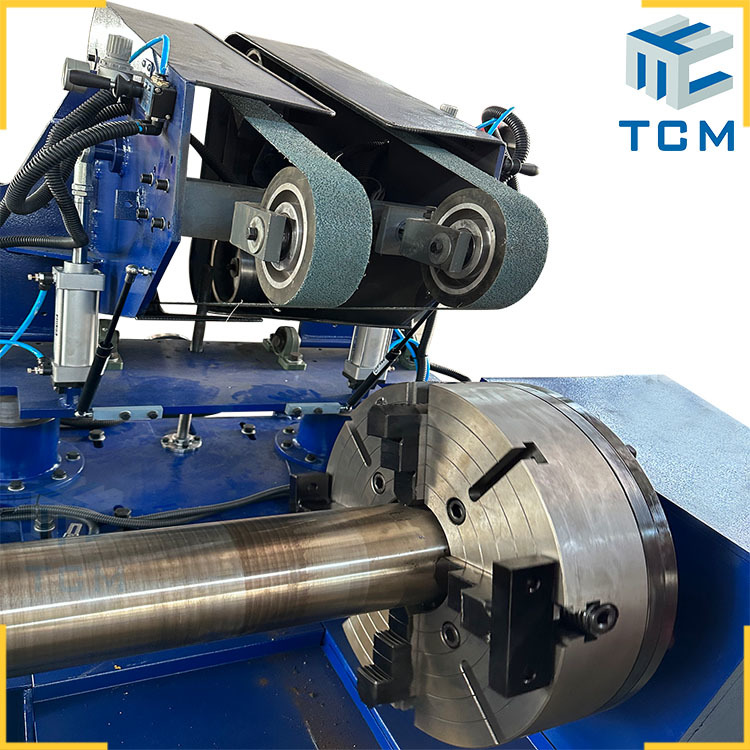

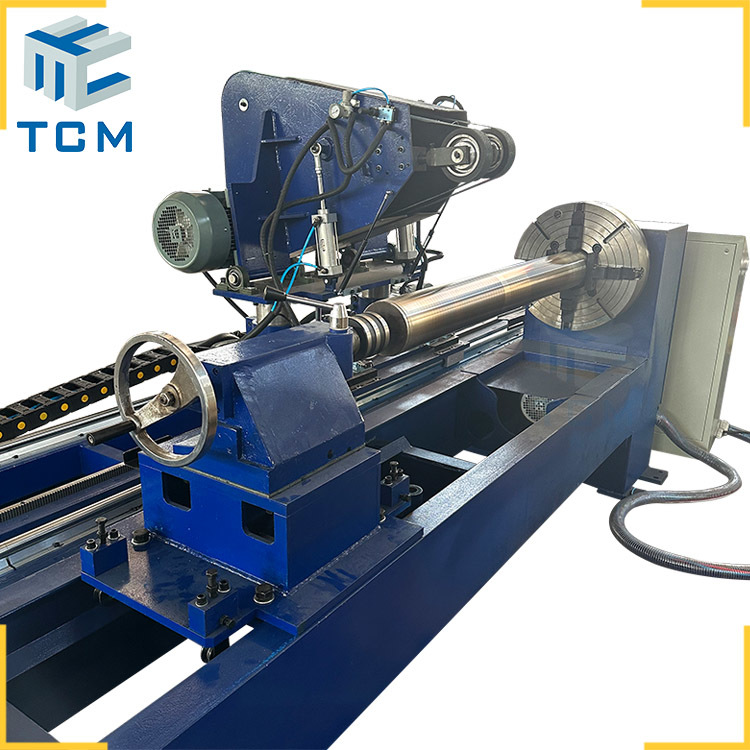

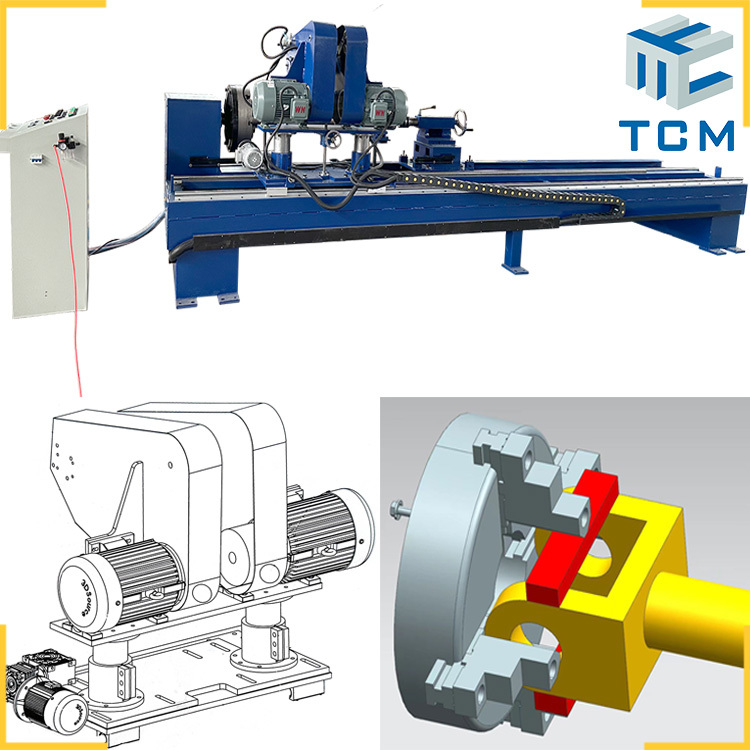

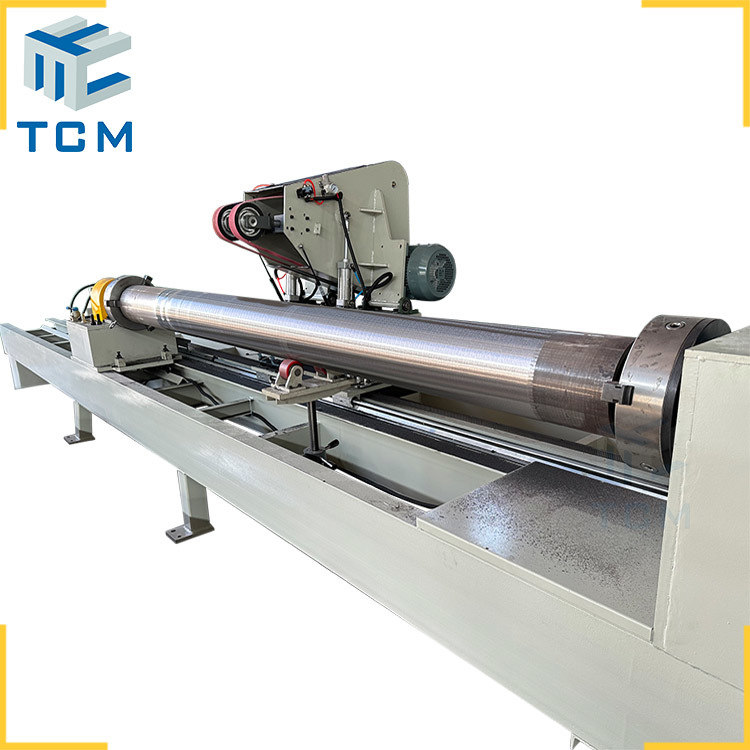

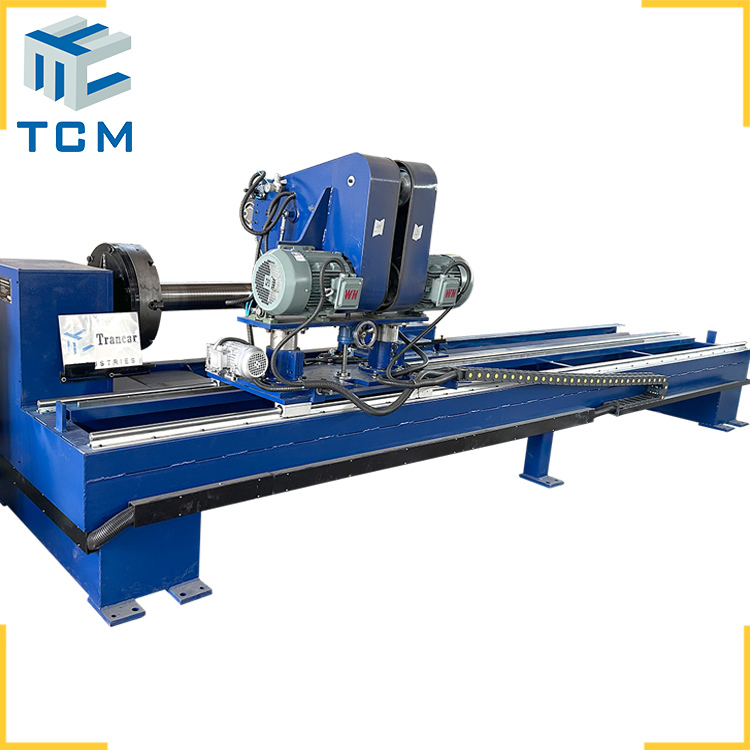

Trancar Industries Model TCM-WP automatic polishing machine is design for stainless steel metal tube product’s surface grinding and buffing,such as it could polish steel tube pipe,Solid bar,hydraulic cylinder exterior surface in automatic way.TCM-WP pipe polishing machine equip with double variable frequency grinding motors both of them power is 7.5 KW.Both grinding wheels and abrasive sanding belts are available for this type tube pipe polishing machine.It’s widely used in the fields of pharmaceutical industry,medical industry,food industry,water purification,Pressure vessel industry,Cosmetic industry,waste water treatment,Semiconductor industry,Photovoltaic industry etc.
TCM-WP Steel pipe tube automatic polishing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Steel metal Pipe size |
Max.Diameter |
40-800 mm |
|
Thickness |
3-10 mm |
|
|
Length |
≦12,000 mm |
|
|
Machine Dimension |
(L×W×H) 14500×1200×1200mm |
|
|
Pipe Roller Max.Loading capacity |
1 Ton / 2 Ton / 5 Ton / 7Ton for options |
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
Input total Power |
22 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
3800kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
|
For option |
Water cooling system is available during polishing. |
|
Trancar Industries pipe polishing machine delivery and package:
Contact Trancar Industries for more pipe polishing linishing solutions:
