Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 제품명 | 반자동 접시 머리 끝 연마 기계 | 차원 | 3500x1600x3050mm |
|---|---|---|---|
| 무게 | 2500kg | 전압 | 380V 400V 415V 등 50Hz/60Hz |
| 색상 옵션 | 파란색/노란색/빨간색/회색 | 용법 | 강철 표면 청소, 녹 제거, 경면 달성 |
| 상태 | 100% 새로운 | 제어 시스템 | 반자동/CNC |
| 연마 효율 | 시간당 8-12m2 | 보증 | 18 달 |
| 판매 후 서비스 | 영상기술지원/온라인지원/해외엔지니어 | 제공하다 | ODM & OEM |
| 강조하다 | 3500x1600x3050mm Dished End Polishing Machine,2500 kg Semi-automatic Polishing Machine,8-12m2 per Hour Tank Head Polishing Machine |
||
제품 설명

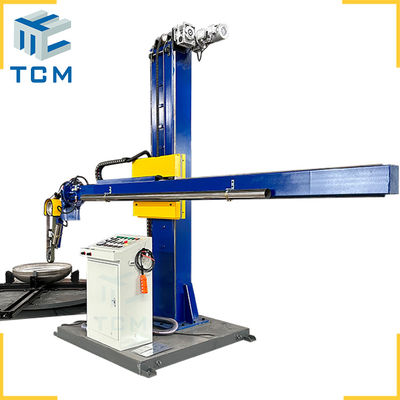

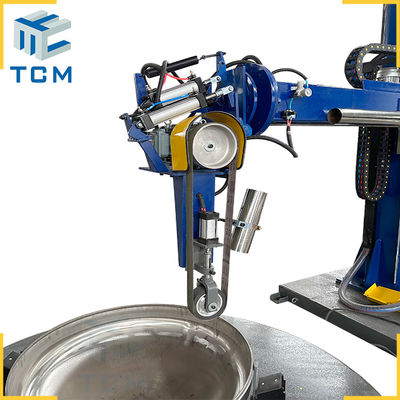

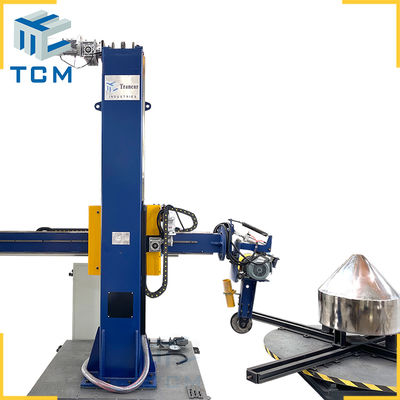

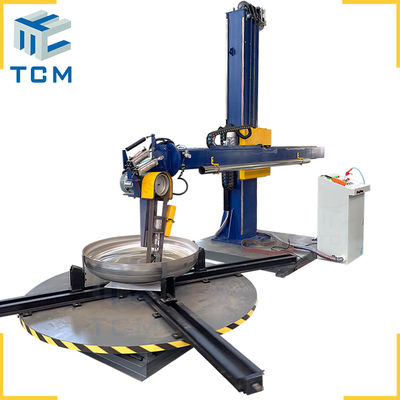

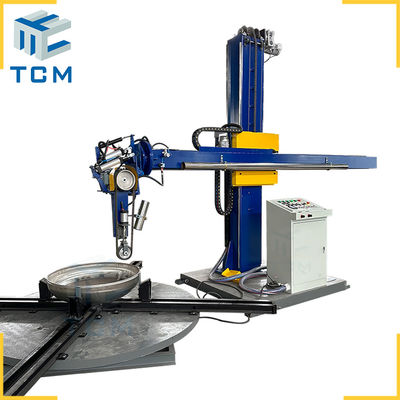

Semi-automatic Polishing Machine for Dish Head End
TCM-D column and boom manipulator automatic surface grinding machine is designed for steel metal tank ends, dish heads, tank caps/bottoms/cones inner and outer surface polishing and buffing.
This model is primarily used for surface polishing of stainless steel, metal, aluminum, and copper dished ends, tank heads, and cylinder heads. It can also be used for vertical tank surface grinding.
The TCM-D automatic polishing machine is suitable for various standard head polishing applications including conical head polishing, spherical head surface polishing, dish head polishing, special heads polishing, and stainless steel oval head inside/outside surface grinding. It's widely used in pharmaceutical, medical, food & beverage, water purification, pressure vessel, cosmetic, wastewater treatment, semiconductor, and photovoltaic industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Available Polishing Workpiece Size | Inside & outside diameter: 450~5000mm |
| Turntable Max Loading Capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton (option or custom design 15 Ton, 20 Ton) |
| Polishing Precision | Surface roughness(Ra) ≤0.25μm |
| Production Efficiency | 6~12 m²/hour |
| Total Dimension | Machine: 3500×1600×3080mm Column: 300×400×8mm Beam: 150×200×6mm |
| Input Total Power | 12 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Color | Grey/Green/Blue/Red/Yellow (Custom design available) |
| Machine Weight | 2250kg |
| Suitable Polishing Material | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |
Packaging and Delivery
- Plywood case + PE Film + Carton protection
- Custom packaging available based on order requirements
Trancar Automatic Polishing Machine in Client's Workshop
